EnergoLine
PROVIDES A GENTLE AND COMFORTABLE HEAT

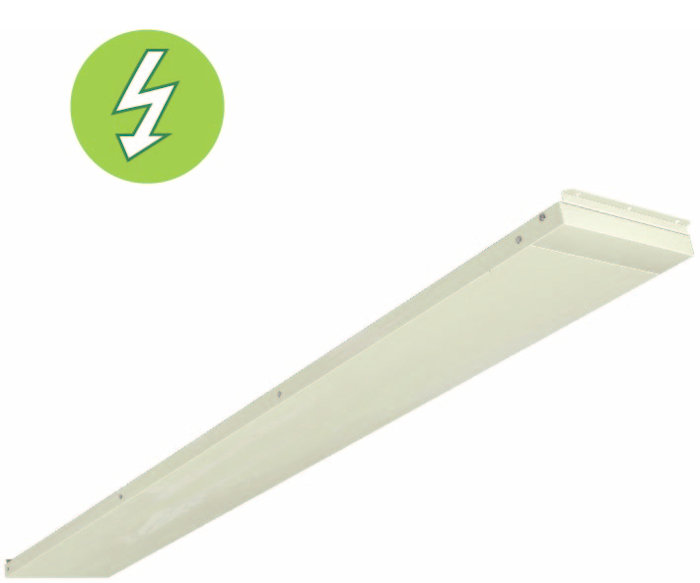

EnergoLine
Electric Bench/Ceiling Heater
Underbench heating offers a discreet heating system for churches, schools, waiting rooms etc. Can also be ceiling mounted up to 3 m. Slim and elegant heater, two outputs 150W or 220W.
How Does It Work?
The EnergoLine, EL, is a slim line, 35 mm thick, low temperature heating panel which mainly emits radiant heat. It has been developed especially as a bench heater but can also be used as a ceiling heater.
As a bench mounted heater it may be mounted underneath the benches in churches, waiting rooms, spectators stands etc. It warms the bench as well as the floor directly underneath. This heating method is very suitable in areas where large air volumes are present, which does not need to be heated.
The bench heater has a rapid heat-up time with comfortable heat directed to where you want it, with good economy and low energy consumption as a result.
As a ceiling mounted heater it is suited to smaller spaces with low ceiling heights up to 3 m. It covers heat Iosses and down draught effectively. EnergoLine provides a high thermal comfort with energy savings up to 25%, compared to a convective heating system.
The thin and elegant design blends in well with the environment. The ceiling mount frees valuable floor and wall spaces, while the heater is protected from contact and damages. An excellent choice of heating system for public areas.
Design and Composition
EnergoLine is made of a galvanized sheet steel plate which is powder coated in white - RAL9016. The backside of the heater is insulated. The heater is designed for a long life expectancy with a robust and durable heating element.
Technical Information
Output: 150W or 220W, 230V.
Appliance and protection class: Class I - IP44.
Mounting height: Up to approximately 3 m.
Connection: Fixed installation to a 4 mm² terminal block in the connection box. Connection between several heaters is possible.
Suspension: EL has fixed mounting plates at each short end, and is mounted straight onto the bench or ceiling.
|
Type |
L (mm) |
W (mm) |
H (mm) |
Kg |
|
EL200 |
1000 |
210 |
35 |
3,0 |
|
EL300 |
1480 |
210 |
35 |
4,5 |
Further information regarding mounting and installation can be obtained from our technical brochure.
Temperature control is simply carried out with use of our room thermostats or heating regulators.
