EnergoStrip

WARMS LIKE THE SUN

A flexible electric radiant panel which can be mounted from 2-40m. Can be used from the smallest room to large industrial buildings. 8 different types to suit any installation, 600-3600W.

Product Brochure

Mounting and Installation
EE-1     EE-2     EE-3

Lean against a wall on a cold morning once the sun is up and you’lI feel surprising warmth even though the temperature may still be several degrees below zero. That’s because the sun’s rays warm the atmosphere by heating solid objects.

EnergoStrip works on the same principle. This provides a natural, all over, comfortable heat without cold spots or draughts, with energy savings of 25-50% in comparison to conventional heating, i.e. hot air.

EnergoStrip can be mounted from 2 to 40 m ceiling height and is suitable for a wide range of applications such as daycare centres, houses, schools, churches, conservatories, showrooms, warehouses, factories, tennis and sport stadi-ums etc. EnergoStrip is approved in splash proof IP44 design for wet and dry areas.

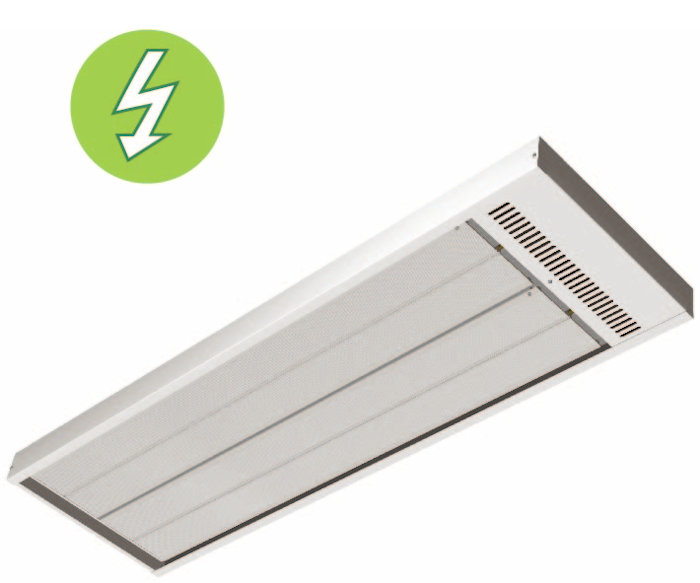

EnergoStrip is made of white powder coated galvanised sheet steel (except EE36 - uncoated) in three basic models. With one heating element: EE6 and EE10. Two heating elements: EE8, EE12, EE16 and EE20. Three heating elements: EE24 and EE36.

The heater should be fitted to the ceiling, using the supplied standard ceiling brackets. It can also be suspended on wires, chains etc. However for the EE24 and EE36 we recommend using the ceiling brackets.

EnergoStrip has an unique construction which avoids the creation of electro magnetic fields (emission tested by SEMKO).

EnergoStrip is approved for fixed installation by an authorised electrician. Cable connections are to a 16 mm² terminal (EE6 and EE10 to a 6 mm² teminal) in the junction box at the end of the heater. The junction box has two cable lead-ins. Connection between several heaters is possible. Note! EE24 and EE36 can be connected to 230V~ or 400V3N~.

Heat control is simply carried out with use of our room thermostats. Where a large number of heaters are fitted, one of our control panels may be used (ask us for a separate brochure).

Type

L (mm)

W (mm)

H (mm)

Kg

EE 6

960

160

50

5.0

EE 10

1680

160

50

8.0

EE 8

650

290

50

6.0

EE 12

960

290

50

8.5

EE 16

1360

290

50

11.5

EE 20

1680

290

50

14.0

EE 24

1360

430

50

16.5

EE 36

1680

430

50

20.0

See References

Product Brochure

Mounting and Installation model EE-1 type EE6 and EE10

Mounting and Installation model EE-2 type EE8, EE12, EE16 and EE20

Mounting and Installation model EE-3 type EE24 and EE36
